SPT Bow Sight

Features SPT Bow Sight

SPT Bow Sight, by Summit Peak TechnologiesOnce calibrated, arrow will hit at sight pin regardless of downhill/uphill shot, bow tilt, or wind conditions
- Set up bow sights for any number of bow/arrow combinations

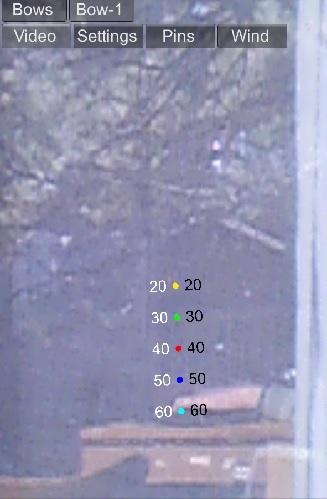

- Multi-point sight - May be used with our without peep sight - Align pin on target using phone video with one eye - Look past phone at target with other eye, align images from both eyes

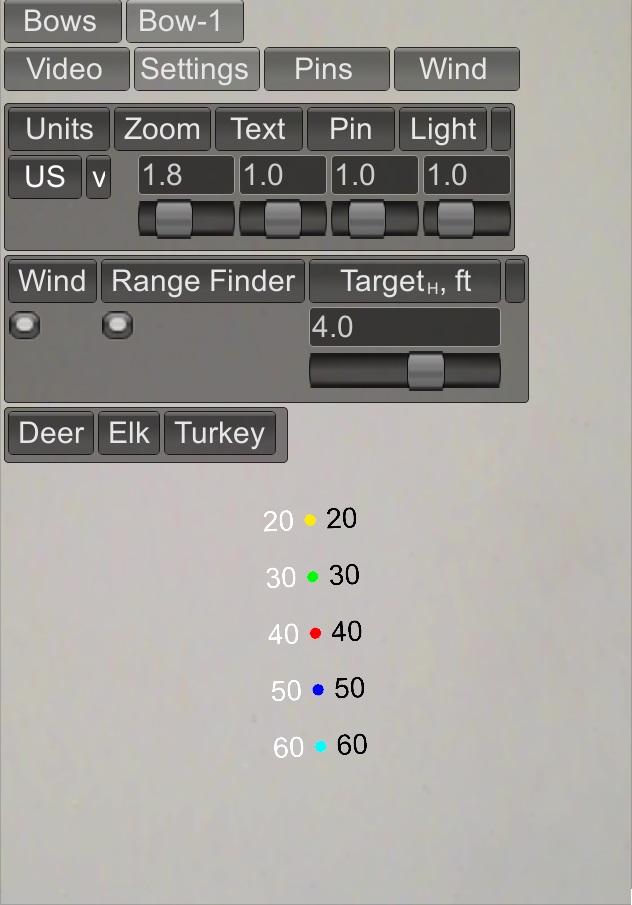

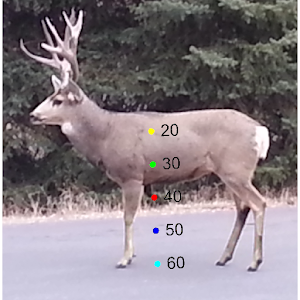

- Built-in range finder (may be disabled for indoor lane shooting) - Set target height, or select game size (deer, elk, turkey) - Hands free: To find range, aim pin at bottom of target when lower button is on, then move same pin to top of target when upper button turns on.
- Video zoom (0.5x - 5x)
- Night vision (up to 3x light enhancement in shades of green, does not work in pitch dark)

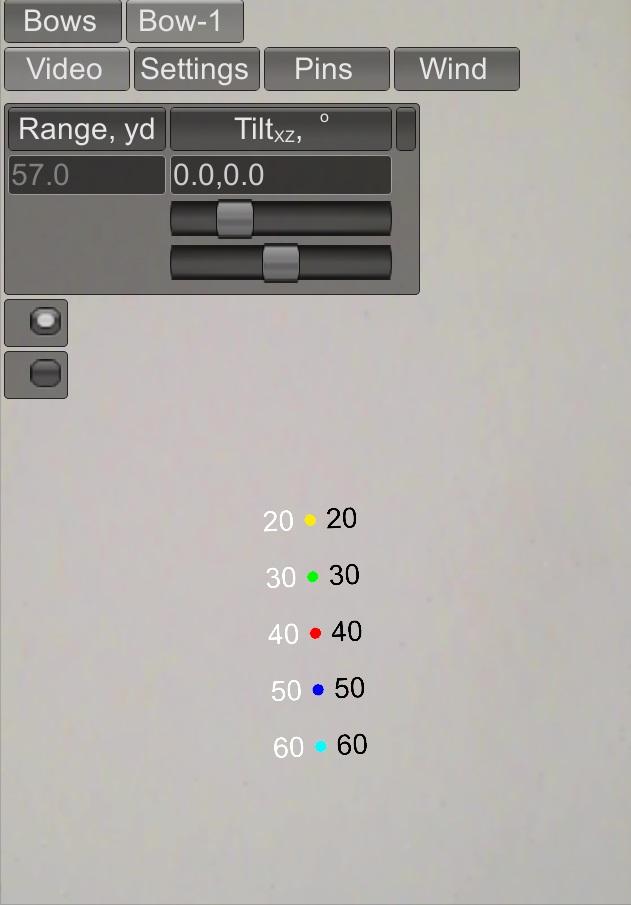

- Customized pin colors, sizes, ranges, text labels, and number of pins - Initialize standard 5-pin set with single button press - Move pins as a group, or one by one, by touch - Adjust video offset for multi-point sight calibration - Set pin rotation center using built-in display grid and inclinometer - Sight in 20 yd pin at 0 degree inclination (no tilt) - Tilt bow 10 degrees and sight in another pin at 20 yds - Tilt bow 20 degrees and sight in another pin at 20 yds - Move C (center of rotation) until all 3 circles of the display grid align for these 3 pins
- Set wind speed and direction with touch - Wind direction automatically corrected as bow sight is rotated using compass - Set bow tilt angle (cant) for 20 mph (30 kph) cross-wind - Typically 2 degrees, but depends on arrow speed, weight, diameter, and fletch size - Pins automatically adjusted to account for wind
- English and metric units
- Attach phone to bow (bracket not included) - Attach phone in vertical position (portrait) for multi-point sight
To build bracket for mounting phone to bow: Bend two metal strips at right angles using a vice (heating metal not necessary).
Tape industrial velcro on the inside bend.
Tape velcro to back of phone and attach to bracket in the same position as a traditional bow sight.
Drill holes in bracket to attach to bow (use a 3/16" titanium drill bit for hole, and a 5/16" bit to bevel the hole).
I used #10-24x1" flat head phillips zinc bolts to accommodate my quiver bracket.
Counter-sink hole before drilling, put some 3-in-one oil on metal strip, then drill very slowly to keep drill bit cool.
File off sharp edges, paint with acrylics, and finish with rust-oleum protective enamel.
Views of bracket are included in screen shot list - Check local hunting regulations before hunting with electronics attached to bow
